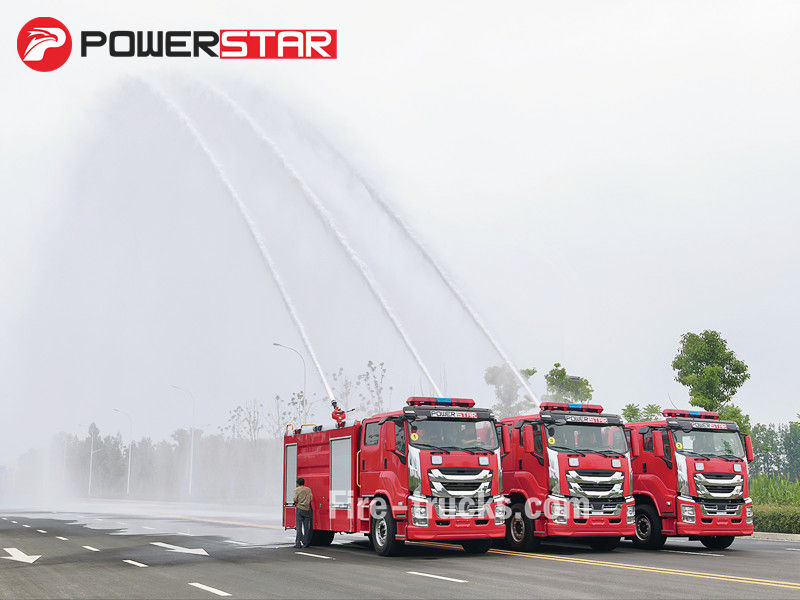

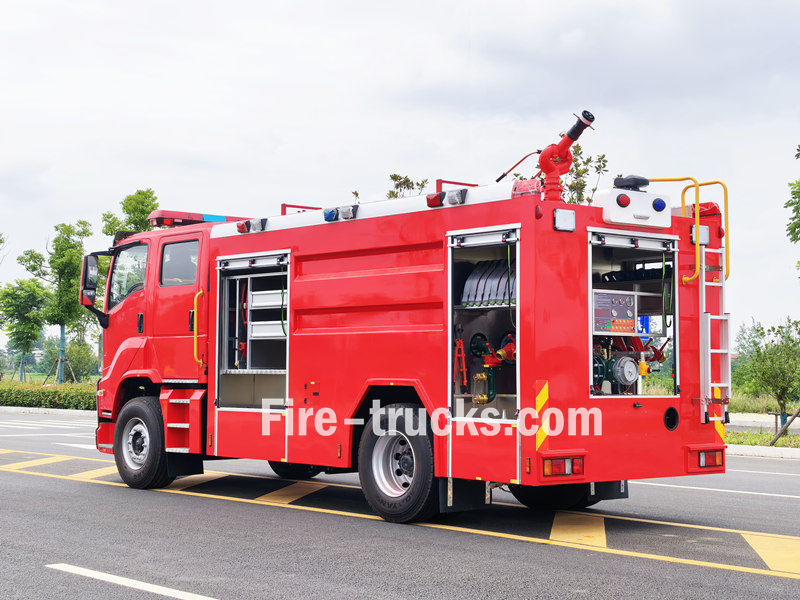

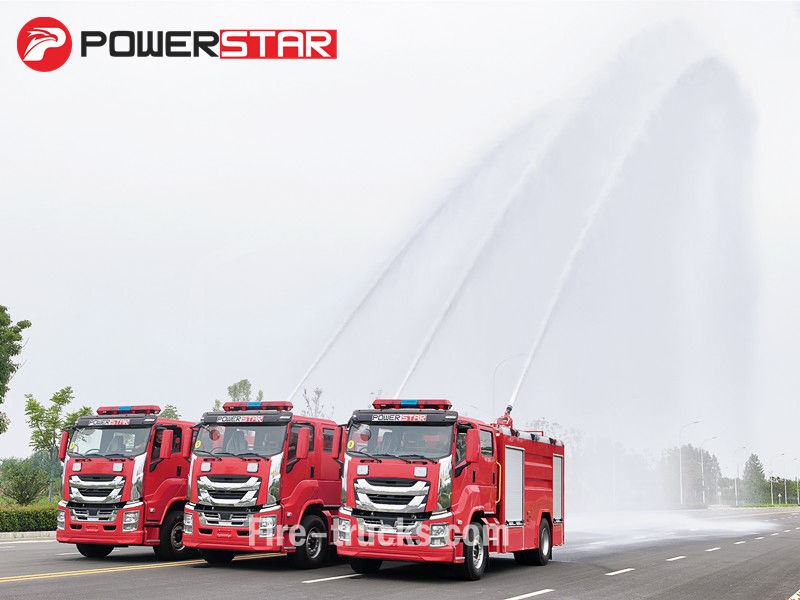

The Isuzu GIGA 8,000 liters fire fighting truck is a specialized fire truck that uses foam mixture as its primary extinguishing agent. It is equipped with a large-capacity water tank, foam liquid tank, and mixing proportioner, as well as high-pressure foam cannons, hoses, and other equipment.
The Isuzu GIGA fire fighting truck also has conventional water firefighting capabilities. It is highly mobile and widely used for emergency firefighting and fire cooling protection in oil depots, chemical industrial parks, gas stations, and other similar locations.
»Ⅰ. General Parameter :
|
Working Capacity |
Engine Model |
Wheelbase |
Superstructure |
|
6000L water + 2000L foam |
6UZ1, 380 Hp |
4600mm |
★Stainless Steel tanker body ★ China famous CB10/60 water fire pump ★Automatic control fire monitor system |
▪ Chassis:
› Type: ISUZU GIGA chassis for Fire application
› Drive system: 4x2 Left hand drive
› Engine: 380HP 6UZ1-TC (ISUZU) Euro 6
› Gearbox: Fast 12 gears manual 12F and 2R
› Tyre: 295/80R22.5
› Crew cabin: Twin cabin with A/C
› Seats capacity: 2+3 person
▪ Extinguishing agent tank:
› Water tank: 6,000 L
› Foam tank: 2,000L
› Tank material: High quality carbon stell plate
› Tank Manhole: DN500mm

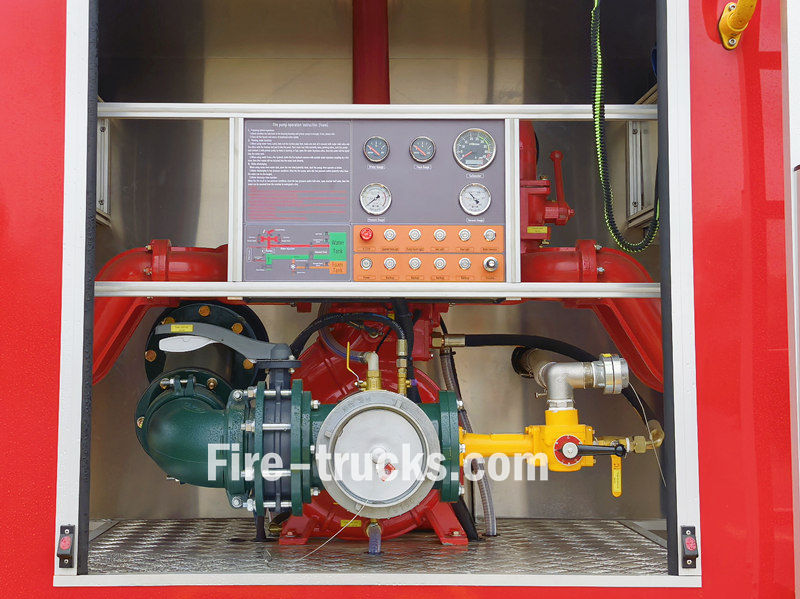

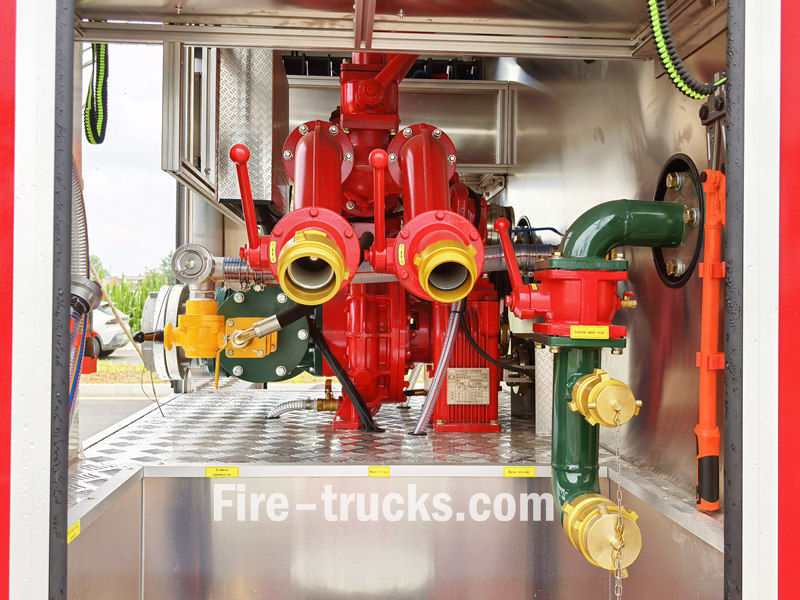

▪ Extinguishing system:
› Fire pump: CB10/60 with 60L/s at 1.0MPa, normal pressure centrifugal pump
› Fire monitor: PL48
› Monitor throw: Water throw≥70meter, Foam throw ≥60m
› Rotation: 360º rotation; elevation: 0-80°, depression -10°
› Water Pumper Inlet Diameter 1*125 mm
› Water Pumper Outlet Diameter 2*65 mm
▪ Equipment compartment:
› LED lighting in equipment compartment
› Each compartment closed by light aluminum roller shutter.
› Including customer-specific additional equipment
› According to human body engineering principle design all kinds of equipment frames
› 1-2 action can take any equipment standing on the ground or pedal
▪ Painting:
› Fire Red: R03 Fire Red
› Logo: According to customer wish
› Operation Manual: English or Appointed langauge
▪ Dimensions & weight:
› L × W × H =7800*2500*3500 mm
› Permissible total weight: 10700 kg

ISUZU Blood heritage
● 6UZ1-TC diesel engine, 380 Hp
● 6,000L tanker, 2,000L Foam tank, SS304 steel
● Stainless pipe system
● Fast 12 gears manual 12F and 2R

Multifunction usage
● With CB10/60 fire pump
● Multi function use, potable water
● Street sprinkler function
● Fire fighting emergency use
» Ⅱ.Product Features:
● Highly Effective Firefighting: Employs a foam extinguishing system to quickly cover the fire source and suppress reignition.
● Wide Range of Applications: Suitable for extinguishing fires involving oil, chemicals, and flammable liquids.
● Stable Performance: Equipped with a fire pump and proportioning system, ensuring reliable operation.
● Highly Mobility and Competitiveness: The vehicle has excellent mobility, enabling rapid deployment to fire scenes to carry out firefighting missions.
